1. Characteristics
Uniform distribution of plastic particles with unified particle size
In additional to use in automobile parts and optical components for gap control, this product can be used in a wide range of applications
Various functions can be added by various metal coatings
▸Micropearl™ AU (metal coated product)
- Uniform particle size distribution: Coefficient of variation (Cv) ≤ 7%, gap can be controlled uniformly
- Wider range of particle sizes 2 μm to 600 μm
- Excellent voltage, heat resistance and chemical resistance
- Tracking resistance test： 600V
- It remains stable even at -40 ～200 ℃ conditions
- Product maintains performance stability against many organic solvents
- Metal coated type, particle adhesive products are also available
2. Particles product Line up
| Micropearl™ SP、GS |
Micropearl™ EX |
Micropearl™ KB |
Micropearl™ EXH |
Micropearl™ EZ |
Micropearl™ SLC （under development） |
Micropearl™ AU |
|
|---|---|---|---|---|---|---|---|
| Color, surface |
Transparent (white) |
Transparent (white) |
Black | Transparent (white) |
Transparent (white) |
Transparent (white) |
metal coated |
| Particle Size | 3〜600μm | 2〜5.5μm | 4〜15μm | 4.9〜6.9μm | 15〜30μm | 50〜150μm | - |
| Hardness (5=hard～1=soft) |
3 | 3 | 3 | 4 | 2 | 1 | 3 |
| Characteristics | Uniform partical size distributions that are able to control uniform sizes. Excellent voltage, heat and chemical resistance | Uniform partical size distributions that are able to maintain tighter particle size control. Excellent voltage, heat and chemical resistance | Divinylbenzene co-polymer particles with black pigment dispersed. Excellent blackness and light shielding properties, and resistance to exudative | Compared to silica particles, this particles are stable with sizes reduction and damage to the substrate. High hardness prevent settlement in the resin caused by heat | It is an acrylic co-polymer particle that is very soft and it can absorb vibration and noise. Also it reduces the damage to the substrate. Due to the lower spring back (recovery rate) of the particle, it can be used for softer substrates. | Silicon polymer based particle . It absorbs vibrations and noise. Lower spring back (recovery rate) of the particles, it can be used for softer substrates | Available to coat evenly with different type of metals onto plastic particles. Our technology can control hardness of particles and repulsive force. |
| Simplified diagram |
 |
 |
 |
 |
 |
 |
 |
| Details |

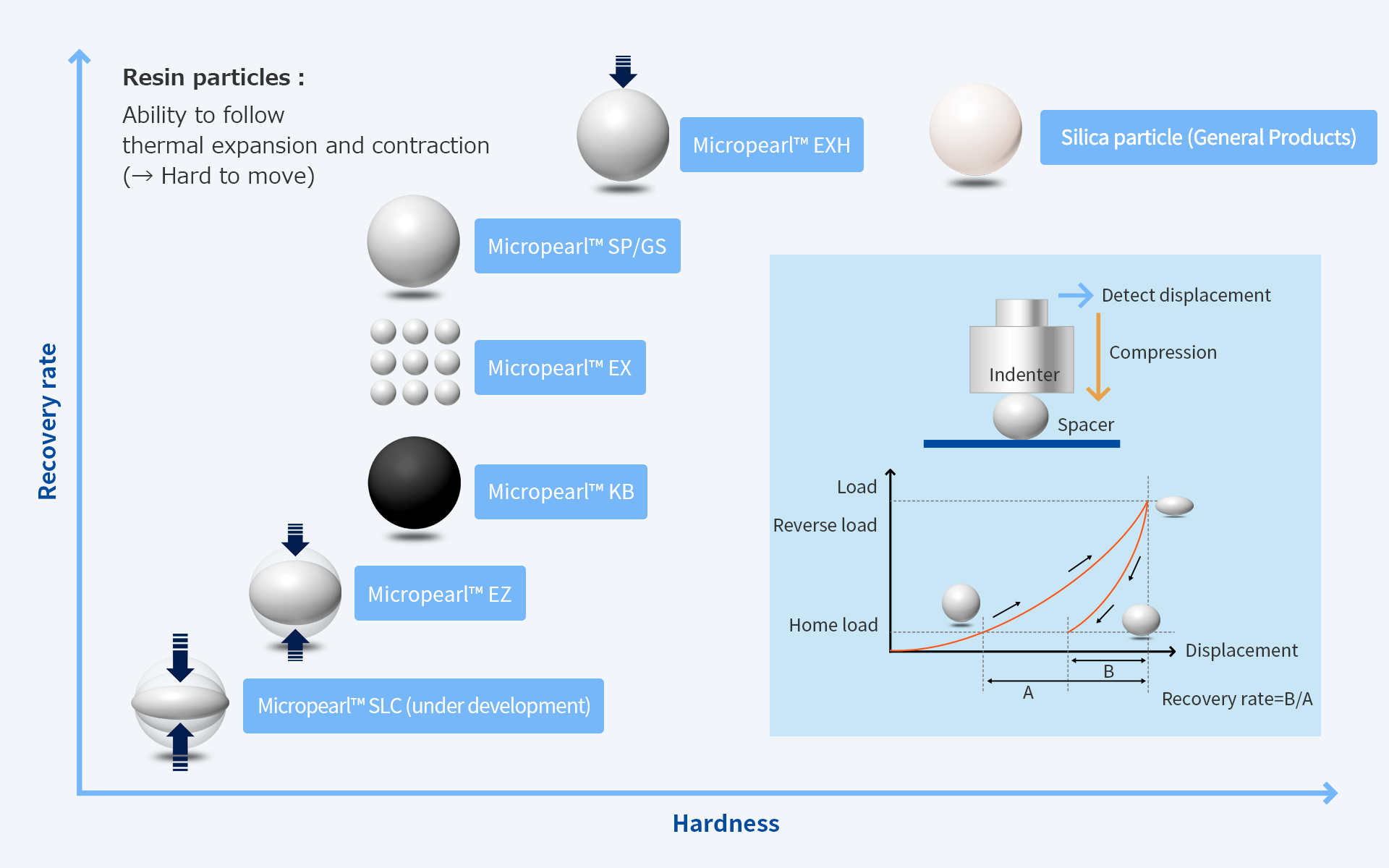

3. Hardness Series
- Wide range of hardness is available, it is possible to choose from rigid to flexible
- Wide range of materials is available to maintain particle sizes

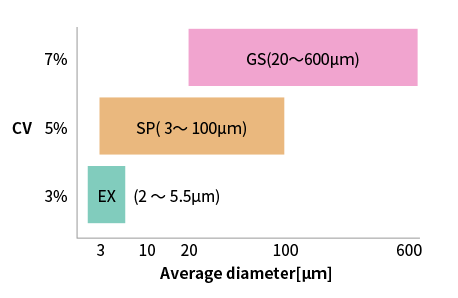

4. Wide range of particle size lineup
Wide range of sizes 2µm〜600µm
5. Possitive applications and effects from using the products

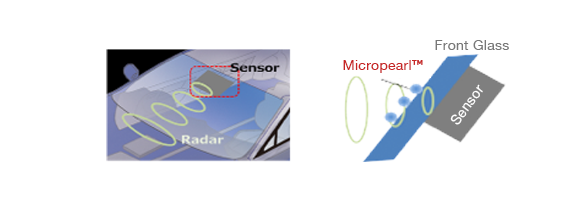

1Excellent gap control for liquid types or ahesive layers
Expected effect
Ensure flatness / parallelism / suppress inclination due to curing shrinkage (improvement of reliability) / prevents optical axis deviation / evenly distributes heat radiation / stress dispersibility sensor sensitivity etc. E.g.) Ensure flatness/ suppress inclination due to curing shrinkage (improvement of reliability) / prevents optical axis deviation / evenly distributes heat radiation / stress dispersibility sensor sensitivity etc.
2Create embossing on the surface
Expected effect
Prevent sticking to film / diffuse reflection of light / retention of film thickness.
Anti-blocking agent / anti glare film etc.
3Able to produce uniform holes
Expected effect
Light weight / low refraction / dielectric constant / large surface area.
E.g.) Porous material for MLCC / Inverse Opal / Catalyst Carrier / Waveguide / Low-K Material etc.
4Used as a simulated specimen for equipment performance evaluation, fluid visualization and normalization
Expected effect
Measure the performance of current size/property etc
E.g.) Evaluating performance of sensor filter/ design machine / Analytical Instruments standard specimen / Clean room quality assurance / Pseudo cell etc.
5Able to provide particles with an adhesive layer
