SEKISUI Clean bottle solution.
Particle control and carefully selected low-elution-grade raw materials are used in many high-purity chemicals, as well as in medicine, cosmetics, and fragrances. 100cc-1L bottles, 10L-20L tanks, and 200L drums are available in clean containers.
![SEKISUI Clean bottle solution.](../../common/images/blow/img01.png)
Integrated response from R&D to mass production
It is easy to scale up from laboratories to mass production.
Since the same clean raw material is used in all the capacity, it is not necessary to evaluate the performance of the container at the time of scale-up.
Superior Clean Performance to Maintain Content Fluid Quality
To limit the elution of impurities into the contents
Complies with UN standards required for transporting hazardous materials
All volumes comply with UN standards (UN Recommendations on the Transport of Dangerous Goods)

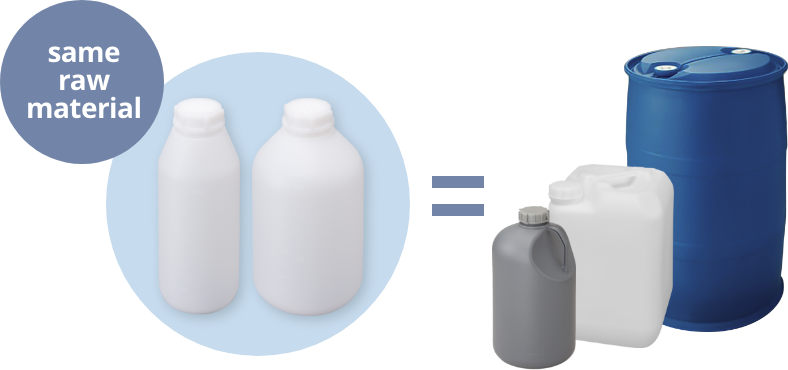

![same raw material](./images/img02A.png)

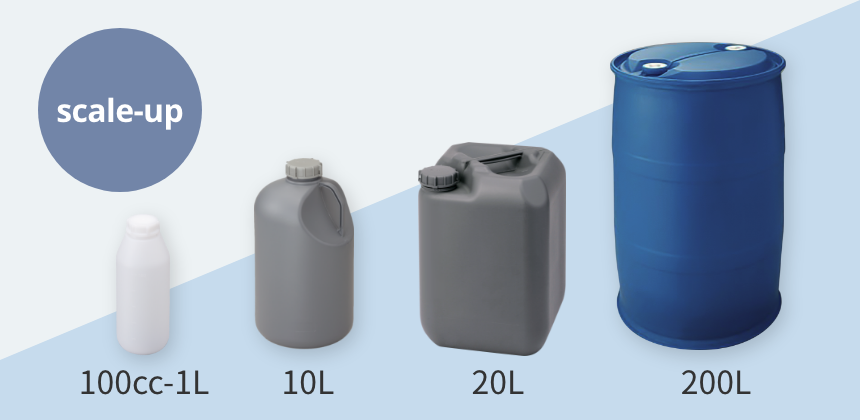

![scale-up](./images/img02B.png)

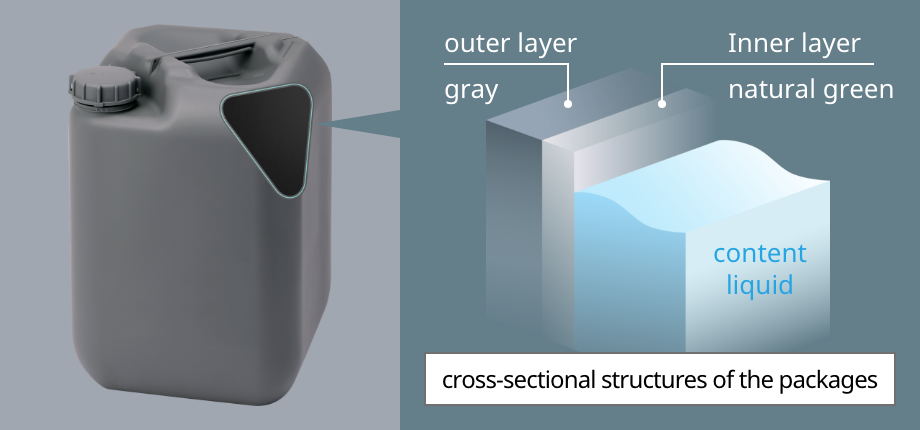

Light-resistant clean containers
Light-shielding clean containers with multilayer structure are most suitable for photosensitive materials.
- Low-elution material is used for the inner layer (wetted layer) to suppress elution of metal impurities.
- Use a gray pigment for the outer layer to ensure light-shielding properties.
![cross-sectional structures of the clean packages](./images/img03.png)
Quality control
Pursuing the highest quality through thorough management of each process
![Thorough traceability](../../common/images/blow/img04A.png)
Thorough traceability
![Production in a clean environment](../../common/images/blow/img04B.png)
Production in a clean environment
![Particle inspection per lot](../../common/images/blow/img04C.png)
Particle inspection per lot
Specifications of SEKISUI HDPE containers
UN Not supported | UN response | |
---|---|---|
Clean | Clean | Clean + UN standard |
![]() |
![]() |
|
General | General containers | UN standard |
![]() |
![]() |
1Container cleanliness control (particle control)
![10~20L Polycon](../../common/images/blow/img06A.png)
10~20L Polycon
≧0.3μm /ml up to 30
![200L Polydrum](../../common/images/blow/img06B.png)
200L Polydrum
≧0.5μm /ml up to 10
2Low elution material
Low-elution grades are used as raw materials to suppress the elution of impurities into the contents.
Performance
Particle measurement value
Value per 1 ml of ultrapure water
![Particle measurement value](./images/img07.png)
Metal impuritiesvalue
Measured by ICP-MS after filling 20L of ultrapure water and storing it for 1 day (24h) at 40°C
Element | Na | Mg | Al | K | Ca | Ti | Cr | Fe | Cu | Zn |
---|---|---|---|---|---|---|---|---|---|---|
20L General | 16 | 720 | 350 | 6 | 13 | <5 | <5 | <5 | <5 | <5 |
20L Clean | <5ppt (below detection limit) Metal impurity levels significantly reduced |
