Conductive Tape
#7800 series
This series is highly conductive, strong adhesive and extremely thin, which is suitable for use in grounding and shielding of thin electronic devices.
Series | 7800 YCSBN |
7800YCSB | 7800YCWB | |||
---|---|---|---|---|---|---|
Name | 7830 YCSBN |
7830 YCSB |
7848 YCSB |
7865 YCSB |
7848 YCWB |
|
Thickness | 30μm | 30μm | 48μm | 65μm | 48μm | |
Base thickness | 18μm | 12μm | 18μm | 35μm | 12μm | |
Structure | ![]() |
![]() |
||||
Application | GND | ● | ● | ● | ● | ● |
EMI Shielding | ● | ● | ● | ● | ||
ESD | ● | ● | ● | ● | ● | |
+Function | Bending | ● | ● | |||
To be Thin | ● | ● | ||||
Heat Dissipation | ● | ● | ● | ● | ● | |
Adhisive | 180°JIS Z0237 SUS (N/25mm) |
10.1 | 14 | 19.1 | 23.0 | 13.4 |
Retention | 85℃*1kg* (mm) | 0 | 0 | 0 | 0 | 0 |
XY | Electrical Resistance (mΩ/sq) |
20 | 20 | 20 | 20 | 20 |
Z | Tape Size: 25×25mm2 Load:500g Cu (mΩ/(25mm□)) |
4 | 4 | 8 | 8 | 7 |
- The above figures are only measurements; their values are not guaranteed.
Features

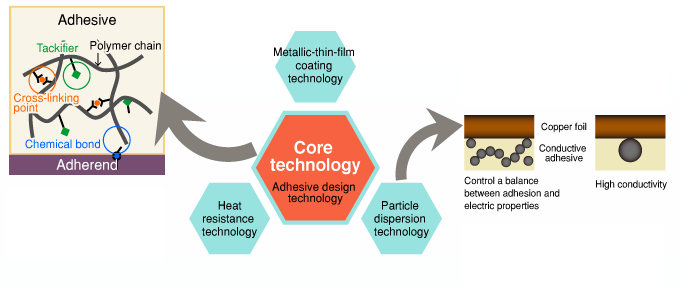

An adhesive design can be made according to the intended use.
![](./images/pic_7800_01.png)
Various functions such as higher reliable performance and heat resistance can be added to adhesives by treating them at the molecular level.
This series has various types of conductive tapes with a basic material using copper foil, non-woven fablics, PET films or metallic foil which are applied a nano-orderd metallic-thin-film coating, making possible to fulfill diverse functions.(Au, Cu, Ag, Ti, SUS, etc.)
Not only is an appropriate selection of fillers possible, but also higher conductivity can be achieved by using our own particle dispersion technology.

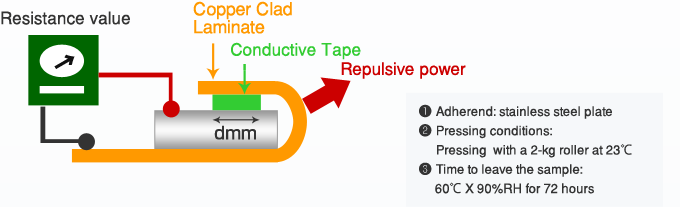

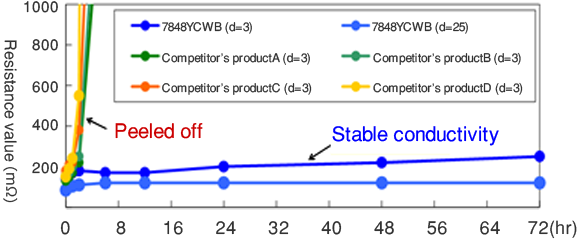

Comparison of Rebound Test Results
![](./images/pic_7800_02.png)
![](./images/pic_7800_03.png)

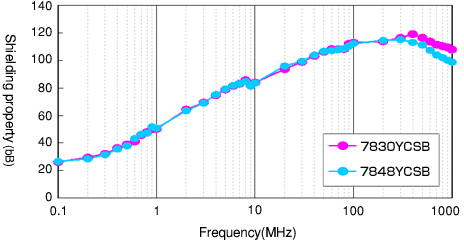

Shielding performance
![](./images/pic_7800_04.png)
Applications
This series can be used to eliminate static electricity and block noise from electronic devices.

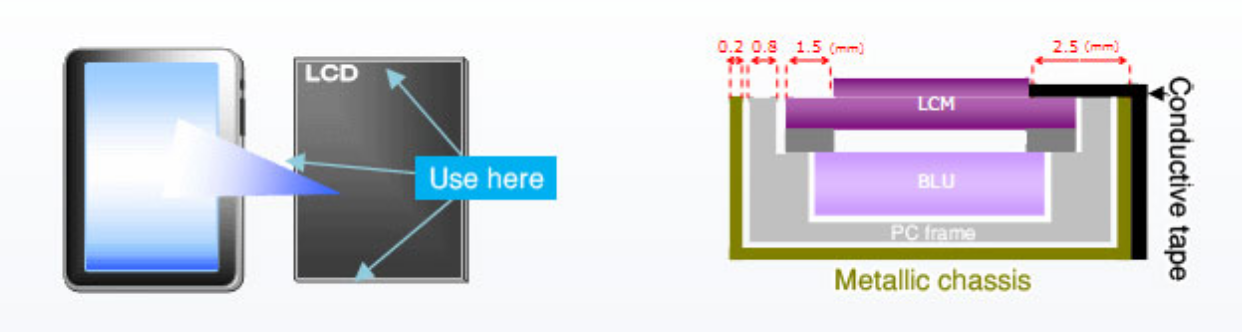

1Remove static electricity from the edges of a LCD
![](./images/cat_img008.png)

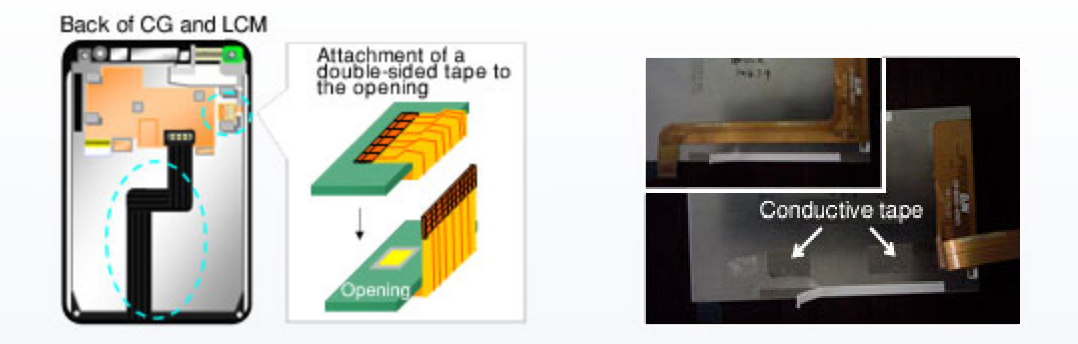

2Use in grounding and shielding of electronic devices
![](./images/cat_img009.png)

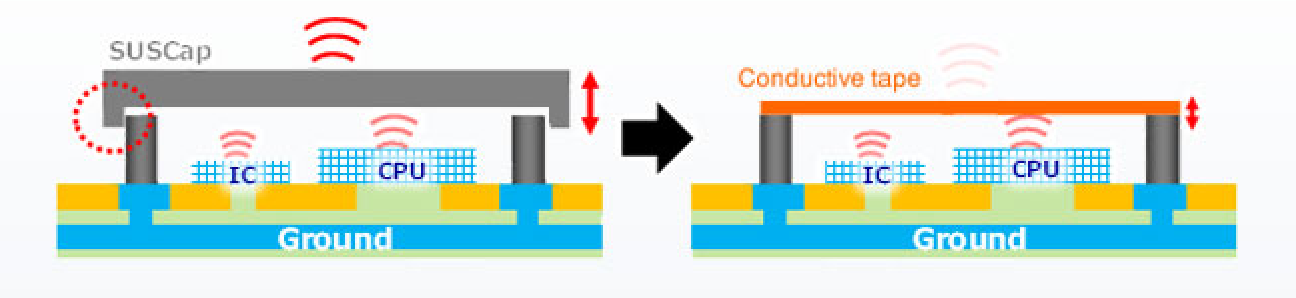

3Serve as a metallic shield case
![](./images/cat_img010.png)
- The above figures are only measurements; their values are not guaranteed.
