Double-faced Adhesive Tape for Fixing of LCD Components
#3800 Series
Double-faced adhesive tapes3800 Series have been developed to attach the backlight and LCD modules. With the introduction of special black and white base materials, these tapes offer excellent light shielding and adhesive strength. They adhere well to various materials.
Features

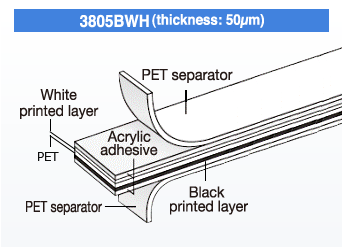

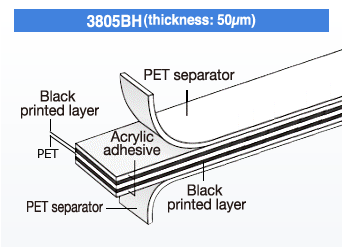

- The special multi-layer print technology, the light shielding performance is significantly improved.
- The light reflective design (black/white print on based material)improves contrast of LCD panel.
- The die cutting will not damage the adhesive. It has excellent adhesive strength.
- Tapes which can avoid short circuits are available in this series.

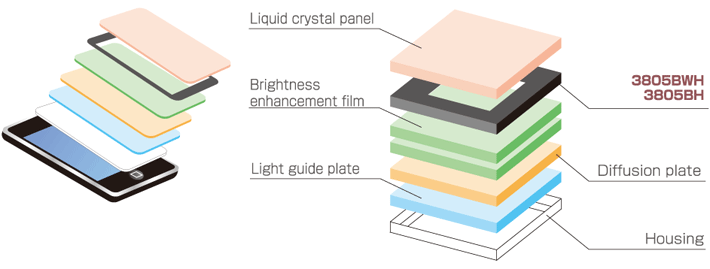

Applications
Characteristics
General physical properties
| Item | Unit | 3805BWH | 3805BH | Remarks | |
|---|---|---|---|---|---|
| Adhesive strength (Substrate:PC plate) | N/25mm | 15.2 | 15.2 | JIS Z 0237 Conforming to |
|
| Adhesive strength (Substrate:Glass plate) | 13.8 | 14.3 | |||
| Reliability test (Substrate:PC plate) | 40℃ | mm | 0.0 | 0.0 | |
| 80℃ | mm | 0.1 | 0.1 | ||
- As the above figures are only measurements, the values cannot be guaranteed.
Others

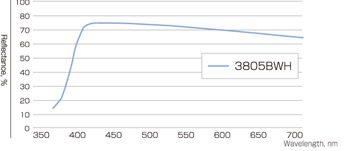

Reflectance of white surface in visible light region
Evaluation of light shielding performance
| Product | Light leakage | Light transmittance,% |
|---|---|---|
| Halogen 750 | 550nm | |
| 3805BWH | No leak | 0.00 |
| 3805BH | No leak | 0.00 |
- As the above figures are only measurements, the values cannot be guaranteed.
3800 Series
Double-faced Tape for Attachment of LCD Components - Product Lineup
| Application | Grade | Thickness, um | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10～20 | 30～40 | 50～55 | 60～65 | 80～90 | 100 | 120 | 140～160 | 200～ | ||||
| Backlight module |
Reflection/ light shielding |
Anti repulsion | 3800BWH | 3803BWH | 3805BWH | 3806BWH | 3808BWH | 3810BWH | ||||
| Single-faced | 3800BWS | 3805BWS | 3809BWS | |||||||||
| Reworked | 3800BWSH | 3805BWSH | ||||||||||
| Light shielding |
Anti repulsion | 3800BH 3800BHB |
3803BH | 3805BH 3805BHB |
3806BH 3806BHB |
3808BH 3808BHB |
3810BH | 3812BH | 3815BH | 3820BH | ||
| Narrow frame | 3800BZ | 3802BZ | ||||||||||
| Single-faced | 3800BS | 3801BXS | 3803BS | 3805BS | 3808BS | 3810BS | ||||||
| Reworked | 3800BSH | 3805BSH | 3806BSH | 3808BSH | ||||||||
| Bonding | Transparent | Stress relief | 3800 | 3803 | 3805 | |||||||
| Anti repulsion | 3800H | 3805H | 3808H | 3810H | ||||||||
| Ultrathin | 3800X | 3801X | ||||||||||
| Reflection | Anti repulsione | 3800WH | 3803WH | 3805WH | 3806WH | 3808WH | 3810WH | |||||
- The above figures are only measurements; their values are not guaranteed.
