S-LEC AS M

Low-temperature decomposition acrylic binder for printing paste

The S-LEC AS M series is a specialized acrylic binder with excellent thermal decomposition properties. It is suitable for applications in which a low-temperature, rapid firing process is applied to maintain high product performance. It reduces sintering residue in an air/nitrogen atmosphere as compared to ethyl cellulose.

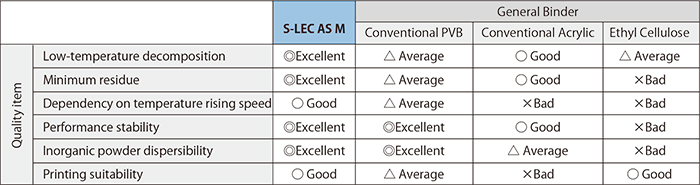

Performance comparison with conventional products

Thermal decomposition

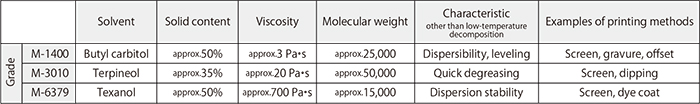

Specifications of S-LEC AS M

* Supplied in vehicle (resin solution) form. Regarding the solvent type and resin solid content, please consult our company.

S-LEC AS TB Developed product

Summary

• - S-LEC AS TB is an acrylic resin with easy decomposability in lower temperature ( at 300℃ or less) and can make a tough ceramic green-sheet.

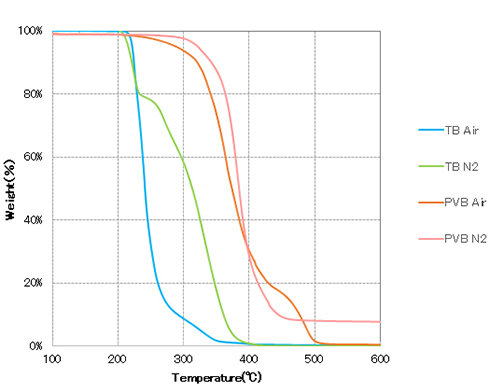

• - Lower residue after sintering in Air or N2 condition.

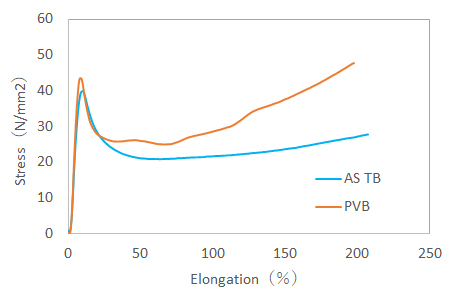

Characteristics

Application

• - For lower temperature sintering or fast sintering with enough sheet strength
• - For Sensitive materials can be damaged from high temperature condition.

Ex）MLCC, Heat dissipation ceramic board, Electrode material, Sintered magnet, and others

Tips

• - This product is provided as a solution in solvent. ( *Solid content and solvent type are selectable optionally.)

Please contact us for availability of samples.
